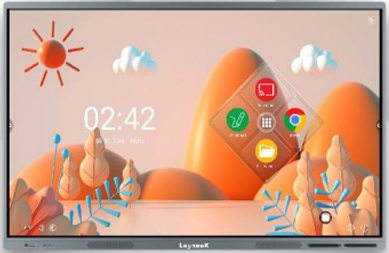

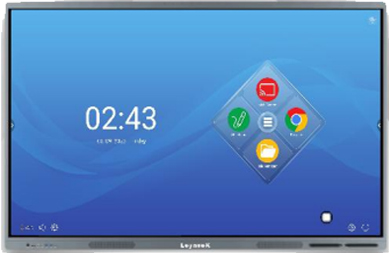

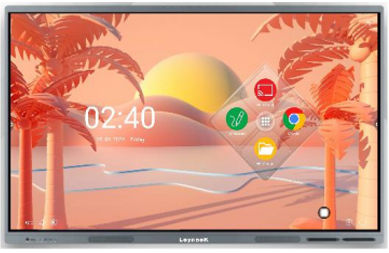

Leyneek A-Sence Series

The Leyneek Interactive Flat Panel A-Sence Series sets a new Leyneek in educational technology, delivering exceptional interactivity, immersive sound, and versatile connectivity. Designed for both teachers and learners, the A-Sence series creates a seamless learning environment that ensures better engagement and collaboration.

UFT Technology

Ultra Fine Touch Technology produces a lag-free, pen-on-paper writing experience.

Toughened Glass

4mm Mohs level 7:anti-glare, anti-scratch and anti-collision, no margin round design, more secure. Insensitive to incident sunlight, adjust brightness automatically, save energy and protect your eyesight

Wireless Content Sharing

Seamless wireless presentation and collaboration during lectures. It allows the smooth streaming of visual, audio files and Full HD quality videos.

Learning without boundaries

K-12 to higher education. Transform your teaching to Innovative learning.
banner
banner
banner

Our Product Specification

LCD

Model Leyneek A-Sence Series 65" Leyneek A-Sence Series 75" Leyneek A-Sence Series 86"
LCD Size65"75"86"
Contrast Ratio1200:1 / 1400:1
BacklightDLED
Resolution3840×2160 pixels
Brightness400 cd/㎡
Dot Pitch (mm)0.124×0.3720.1432×0.42960.1645×0.4935
Response Time8ms
Aspect Ratio16:9
Frame Frequency60Hz
Angle of View178°
Aging≥50,000 H
Active Area (mm)1428.48×803.52
Display CoverAnti-glare 3mm tempered glass moss 7 grade

Android System

CPUA55×8 / Frequency: 1.5GHz
GPUG52 MC2
RAM / ROM8GB / 128GB
System VersionAndroid 14.0

I/O Ports

Front PortsHDMI IN×1 / USB2.0×2 / TOUCH USB×1 / Light Sensor
Rear PortsRS232×1, SPDIF OUT×1, EARPHONE×1, HDMI IN×2, HDMI OUT×1, TOUCH USB-B×1, TF CARD×1, USB3.0×1, USB2.0×1, AV IN×1, AV OUT×1, VGA IN×1, VGA AUDIO IN×1, RJ45 IN×1, RJ45 OUT×1, DP IN×1, YPBPR IN×1

IR Touch

Touch PointAndroid 20 Point / Windows 40 Point
Writing Point10 Points 2mm writing (over 90% Area)
Min. Object Size1.5mm (over 90% Area)
Touch Average Resolution±0.5mm (over 90% Area)
Support Level 4 Object Recognition3mm / 7mm / 11mm / 30mm / 50mm (Stylus Tip / Stylus Head / Finger / Fist / Palm)
Response Time for Touch≤2.0ms
Touch DurabilityUnlimited
Input MethodFinger, Stylus Pen, Opaque objects

Power

Power Supply100 V ~ 240 V, 50 - 60 Hz
Rated Power≤190W≤320W≤410W
Standby Power≤0.5W
Built-in Speaker2 × 8Ω15W

Dimension & Weight

Category 65" 75" 86"
Net Weight40±2kg50±2kg67±2kg
Gross Weight51±2kg67±2kg79±2kg
Dimensions (mm)1492.7×85×900.21714.9×83.6×1025.41961.1×92.5×1164
Package Dimensions (mm)1580×205×10001810×205×11502060×205×1280
Power 100-240-50/60Hz
Altitude Below 5000 metres
Standby Power Consumption ≤0.5W
